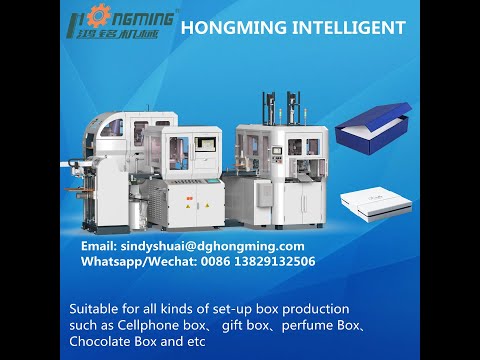

HM-ZD350D/ Express Automatic Rigid Box Machine is the
most advanced fully auto box machine by our company. It is suitable to make
various types of rigid boxes for mass production, such as premium box, mobile phone
box, jewelry box, wine box, slanting box,, etc.
This machine adopts YASKAWA PLC and motion
control, YAMAYA Robot spotter, and can automatically feed cover paper,
feed grey board, paste four corners, spot grey board, lift box, wrap box, fold
corner edges and form box.
The feeder, gluer and conveyor are driven servo which has
continuously variable transmission and enjoys high accuracy, easy adjusting,
and less time consumption. The spotter unit adopts Germany
Balser camera tracing system with YAMAHA robot and SCARA for rectifying,
enhancing the spotting accuracy to ±0.05mm. The forming unit employs electric
Cam with Servo motors, guaranteeing the stable quality and fluent movement.
3.3. Features and
function:
1. Suit to all kinds
of rigid boxes in mass production;
2. Computer control
with error auto stop and display;
3. Wrapper Automatically
change mold with servos(Optional);
4. Automatically feed
paper and greyboard;
5. 24-hours control
for glue pre-heating;
6. Wrapper Input
300 product formul;
7. Automatically cut
and heat tape to paste the greyboard box’s quad stayer (four corners), with
independent man-machine control;
8. Spotter by camera
tracing system and YAMAHA Robot to spot correctly (spotting accuracy ±0.05mm);
9. Wrapper can
automatically and continually deliver box, wrap paper, fold corner edge, fold
in and form box;
10. Automatic control
system for glue viscosity (optional).
